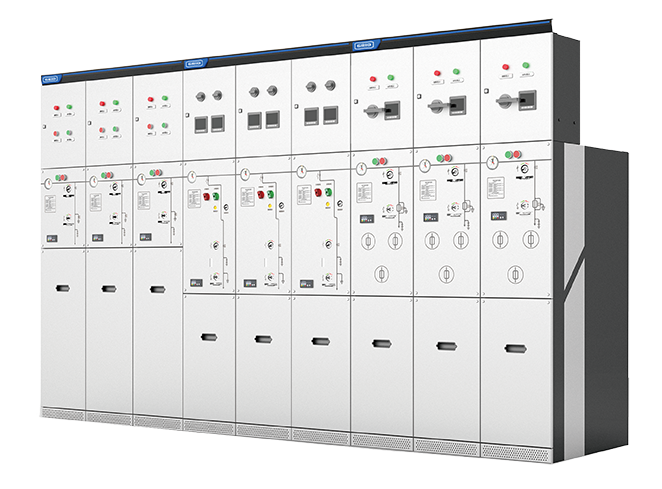

Medium-Voltage Switchgear

SPECIFICATIONS:

Utility substations, industrial and mining facilities, commercial high-rise buildings, rail and transit traction power systems, renewable energy collection substations, and data centers requiring compact, maintenance-free medium-voltage distribution.

Standards: IEC 62271-200, IEC 62271-1, IEC 62271-100, IEC 62271-102

Parameters: Voltage: 12kV, 24kV, 40.5kV | Current: 630A – 3150A | Breaking capacity: 16kA – 40kA

Features:

• SF₆ Gas-Insulated Enclosure
• Compact Footprint Design
• Maintenance-Free Operation
• Comprehensive Mechanical Interlocking
• Metal-Enclosed Construction

SPECIFICATIONS:

Utility substations, power plant auxiliary systems, industrial and manufacturing facilities, mining operations, commercial buildings, and renewable energy collection substations requiring reliable indoor medium-voltage distribution with draw-out serviceability.

Standards: IEC 62271-200

Parameters: Voltage: 3.6kV, 7.2kV, 12kV, 24kV | Current: Up to 5000A | Breaking capacity: Up to 50kA

Features:

• Draw-Out Circuit Breaker Trolleys
• Vacuum Circuit Breaker Technology
• Metal-Clad Compartmentalized Construction
• Five-Position Mechanical Interlocking
• Interchangeable Trolley Options (VCB, PT, Isolation)
